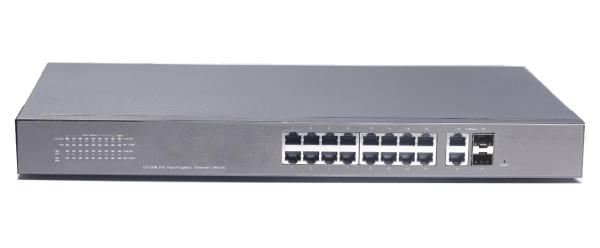

16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch

Product Categories
E-link China Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch

  • 1
  • 2
  • 3

Brand Name : E-link China

Model Number : LNK-M2016P

Certification : CE, RoHS, FCC

Place of Origin : China

MOQ : 1 piece

Payment Terms : T/T, Western Union, MoneyGram, L/C, Paypal

Supply Ability : 100000000pcs/month

Delivery Time : 3-5 working days

Packaging Details : 1 piece in 1 carton; Support OEM Service

MAC : 16K

Buffer memory space : 2Mbit

Power : DC48V

Working temperature : -10~60℃

Dimension : 28mm (H)×193mm(W)×119mm (D)

Cat5 Distance : 100m

Built-in Power Supply : Support

Bit error rate : <1/1000000000

Power consumption : 6W

SFP Distance : 0-120km

Contact Now

16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch

16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch

Technical Indexes

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3af, IEEE802.3at, IEEE802.1d Spanning Tree
PoE

PoE ports: 16 ports

Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W

Working mode: auto discovery power receiving devices and auto power supply/power cutting
Wavelength SFP Module: 850nm/1310nm/1490nm/1550nm
Distance

1000M SFP

multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm)

Single-mode:10/20/40/60/80/100/120Km

Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m
Port

16 100M RJ45 ports (PoE optional): 10/100Mbps

2 1000M SFP ports: 1000M SFP
MAC 16K
Buffer memory space 2Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC48V
Power consumption 6W for the deivce, PoE power maximum 247W

Working

temperature

 -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 28mm (H)×193mm(W)×119mm (D)

Overview

LNK-M2016P Series is 18 ports managed 100M/1000M PoE Ethernet switch, with 16 10/100M RJ45 PoE ports and 2 1000M SFP uplink ports. Managed type supports web management.

LNK-M2016P supports IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards. It can auto discover the power receiving devices which support IEEE802.3af/at standard and supply power to it. To the connected devices which not support PoE, it will auto stop supplying power.

LNK-M2016P supports to work with IP camera, IP phone, wireless AP and other network devices, and supply power to these devices, supports to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.

Features

  • Support maximum 16 10/100M RJ45 PoE ports and 2 1000M SFP uplink ports
  • Each PoE port supports to auto discovery the standard power receiving device
  • Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
  • Support 100M port full rate, full-duplex non-blocking forwarding
  • Support 16K MAC learning, 2Mbits storage and forward cache space,18G back plane bandwidth
  • Each RJ45 port using anti-high voltage circuit, strengthen the lightning protection and anti-interference ability
  • Support to choose one side with fixed metal casing, built-in power design, better for heat dissipating and installation

16 ports 10 / 100 / 1000Mbps TP PoE with 2 ports SFP Fiber Ethernet PoE Switch
