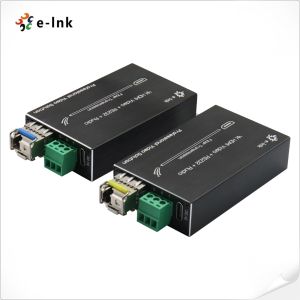

Mini 4K HDMI Fiber Extender with RS232 Stereo Audio Up to 80km Distance
Overview
The Mini 4K HDMI Fiber Extender delivers uncompressed HDMI 1.4a video, stereo audio,
and RS232 signals over optical fiber with zero delay and no loss. Supporting resolutions up
to 4K×2K@60Hz (YUV 4:2:0) and transmission distances up to 80km, it ensures stable,
interference-free performance. Compact and easy to install, it is ideal for large-screen
displays, video conferencing systems, and home theater applications.
Features
Stunning 4K×2K@60Hz (YUV 4:2:0) video quality with HDMI 1.4a & HDCP compliance
Transmits HDMI, stereo audio, and RS232 over a single optical fiber cable
Uncompressed, zero-latency signal for maximum clarity and precision
Long-distance transmission up to 80km on single-mode fiber
Compact, lightweight design for effortless installation
EMI/RFI resistant for stable, interference-free performance
Technical Indexes
| Type of Extender | Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals | HDMI |
| Connector | Female HDMI type A |
| Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support | Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling | Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
| EDID | Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |
| Audio Interface | 3.5MM external stereo audio |
| RS232 | 3 Pin terminal, Baud rate ≤ 38400 |
| Fiber Connector | SFP/LC |
| Bandwidth | 10.2Gbps |
| Transmission Distance | 300m (Over OM3 Fiber) |
| Up to 80km (Over Single-mode Fiber) |
| Operating Temperature | -10 to + 50°C |
| Storage Temperature | -20 to + 80°C |
| Humidity | 5% to 90% RH (non-condensing) |
| MTBF | 100,000 hours |
| Dimension (WxDxH) | 2.87 x 1.73 x 0.69in (73x44x17mm) |
| Weight | 60g / 0.13 lb |
| Power Supply | 5V DC, USB Typ-C |
| Power dissipation | <5W |
| Safety Approvals | CE, FCC, Rohs |
Ordering Information
| Model | Description |
|
| LNK-MHRA4K-MM | Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input |
| LNK-MHRA4K-S20 | Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input |
| LNK-MHRA4K-S40 | Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input |
| LNK-MHRA4K-S80 | Mini HDMI Fiber Extender: 1Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Type-C Power Input |
Application

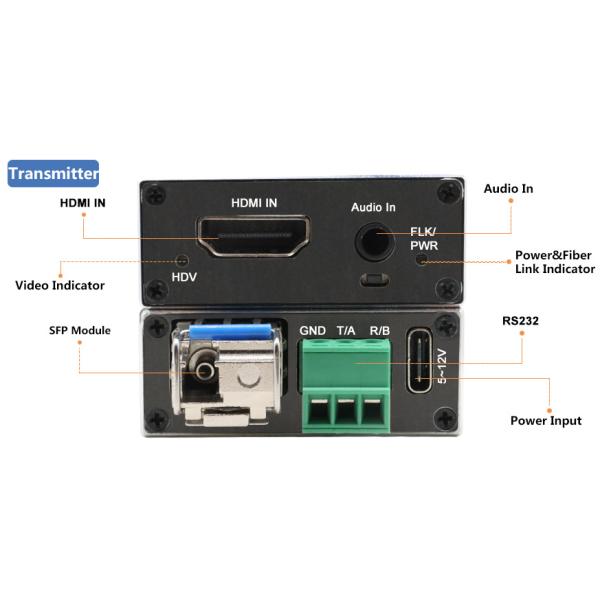

Panel Information
